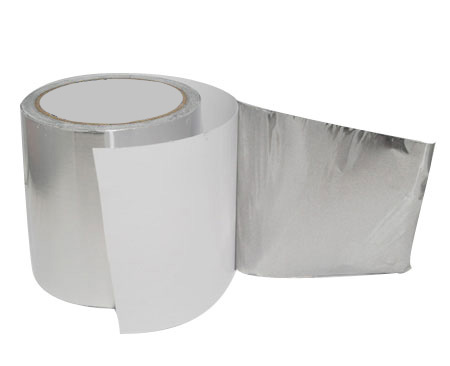

Double conductive aluminum foil tapes
- Specifications:0.02-0.1mm
- Describe:
- Contact us
Details
Aluminum foil substrate, conductive adhesive with liner.

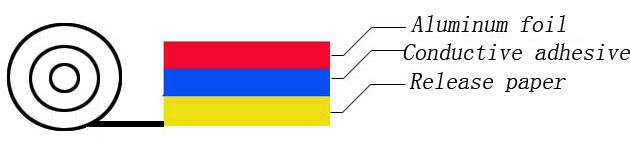

Structure:
Specifications:
| Item | Aluminum foil thickness | Mylar thickness | Adhesive | Total thickness | 180°Peeling strength(g/inch) | Temperature tolerance | Liner |
| MY-AL-10 | 0.1mm | \ | Conductive adhesive | 0.135±0.01mm | >1000g | 0-80° | one side release paper |
| MY-AL-10 with filling | 0.1mm | \ | Conductive adhesive | 0.16±0.015mm | >800g | 0-80° | double sides release paper |
| MY-AL-5 | 0.05mm | \ | Conductive adhesive | 0.085±0.01mm | >1000g | 0-80° | one side release paper |
| MY-AL-5-01 | 0.05mm | \ | Conductive adhesive | 0.095±0.01mm | >1000g | 0-80° | one side release paper |
| MY-AL-5 with filling | 0.05mm | \ | Conductive adhesive | 0.13±0.02mm | >1000g | 0-80° | double sides release paper |
| MY-AL-25 | 0.025mm | \ | Conductive adhesive | 0.06±0.01mm | >1000g | 0-80° | one side release paper |
| MY-AL-02 with filling | 0.02mm | \ | Conductive adhesive | 0.085±0.015mm | >800g | 0-80° |
double sides release paper |
